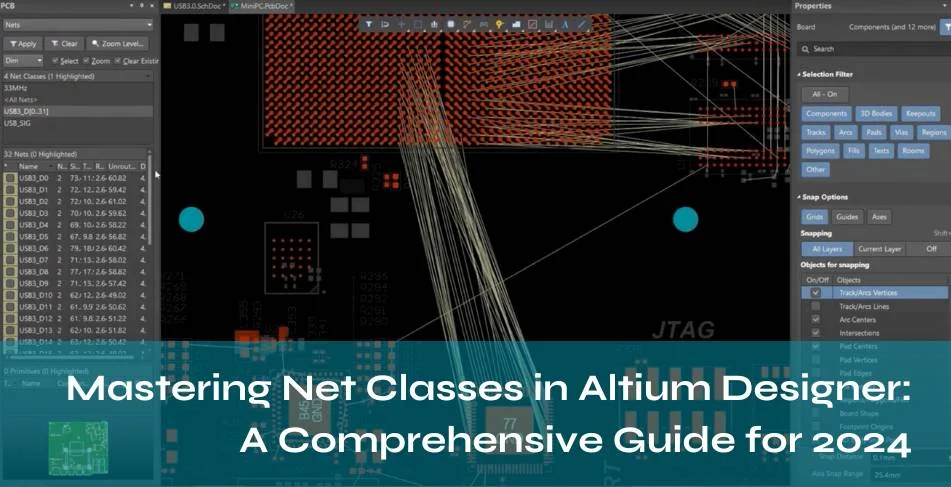

Designing complex printed circuit boards (PCBs) can be a daunting task, but Altium Designer’s Net Classes feature is here to save the day! Did you know that using Net Classes can reduce your design time by up to 30%? In this guide, we’ll dive deep into the world of Net Classes in Altium Designer, exploring how this powerful tool can revolutionize your PCB design workflow. Whether you’re a seasoned pro or just starting out, get ready to supercharge your productivity and create more efficient, organized designs. Let’s jump in and unlock the full potential of Net Classes!

2. Understanding Net Classes in Altium Designer- What are Net Classes?

• Definition: Net Classes are groups of similar nets in PCB design, serving as an organizational tool for managing nets with shared characteristics or purposes.
• Purpose: Net Classes improve efficiency in the design process and maintain consistency across the board.

Key Benefits

• Time-saving: Apply rules to entire groups at once
• Consistency: Ensure similar nets have the same rules
• Simplify complex designs: Manage numerous nets more easily
• Enhanced organization: Keep design elements logically structured

Net Classes vs. Other Grouping Methods

• More flexible and powerful
• Allow application of design rules
• Enable setting routing priorities
• Generate useful reports for documentation and troubleshooting

Implementing Net Classes

1. Create classes early in the design process
2. Name classes based on function or characteristics (e.g., “PowerNets”, “HighSpeedSignals”)
3. Assign nets to appropriate classes
4. Apply design rules to classes as needed

Best Practices

• Start using Net Classes from the beginning of a project
• Use meaningful names for easy identification
• Avoid creating too many classes – keep it manageable
• Regularly review and update classes as the design evolves

Pro Tip: Net Classes in Altium Designer are a powerful tool for organizing, managing, and optimizing PCB designs. They’re especially valuable for complex boards with numerous nets.

3. Setting Up Net Classes in Your Altium Designer Project –

A Step-by-Step Guide

1. Accessing the Net Classes Dialog Box
• Navigate to the “Design” menu.
• Click on “Net Classes.”

2. Creating New Net Classes
• In the Net Classes dialog box, click the “Add” button.
• Assign meaningful names (e.g., “PowerNets,” “HighSpeedSignals,” “AnalogInputs”).

3. Adding Nets to Classes
• Manually: Select desired nets and drag and drop them into the appropriate class.
• Automatically: Set up rules based on net names or attributes, using wildcards (e.g., “_PWR” for power-related nets).

4. Importing and Exporting Net Classes
• Exporting: Locate the “Export” button in the Net Classes dialog and save as CSV or similar format.
• Importing: Find the “Import” button and select a previously saved Net Classes file.
• Tip: Always review imported Net Classes to ensure relevance to the current project.

Benefits of Proper Net Class Setup

• Cleaner designs
• Improved organization
• Easier troubleshooting
• Time-saving for future projects

Remember: Investing time in setting up Net Classes initially leads to more efficient PCB design processes in the long run.

4. Applying Design Rules to Net Classes

Overview of Design Rules Applicable to Net Classes

1. Clearance Rules: • Minimum distances between nets • Specific to Net Class properties
2. Width Rules: • Define trace widths for different Net Classes • Useful for power, signal, and high-speed nets
3. Routing Rules: • Specify routing layers • Set via types for different Net Classes
4. Manufacturing Rules: • Solder mask and paste mask expansions • Specific to Net Class requirements
5. Signal Integrity Rules: • Impedance control • Length matching for differential pairs

Creating Custom Rules for Specific Net Classes

1. Access the PCB Rules and Constraints Editor: • Design > Rules
2. Create a new rule: • Right-click on the rule type • Select ‘New Rule’
3. Define rule scope: • Select the specific Net Class in the ‘Where the First Object Matches’ field
4. Set rule parameters: • Adjust settings based on the rule type and Net Class requirements
5. Name the rule: • Use a descriptive name for easy identification

Prioritizing Rules and Resolving Conflicts

1. Rule Priority: • Higher priority rules override lower priority ones • Adjust priority in the PCB Rules and Constraints Editor
2. Conflict Resolution: • Altium Designer applies the strictest rule when conflicts occur • Review Design Rule Checker (DRC) reports for conflict identification
3. Best Practices: • Create specific rules before general ones • Use clear naming conventions for easy management • Regularly review and update rules as the design evolves
4. Troubleshooting: • Use the Query Builder to test rule application • Temporarily disable conflicting rules to isolate issues

Key Takeaway: Effective application of design rules to Net Classes ensures design integrity, manufacturability, and performance. Regular review and adjustment of rules are crucial for optimal PCB design.

5. Leveraging Net Classes for Efficient Routing

1. Using Net Classes to Streamline Routing

• Color Coding: Assign distinct colors to Net Classes for quick identification and routing of similar nets.
• Routing Priority: Set the routing order based on Net Classes. For example, route power nets before signal nets.

2. Applying Routing Strategies Based on Net Classes

• Power Nets: Use wider traces, Implement star routing from power source
• Signal Nets: Apply appropriate trace widths, Consider signal integrity requirements
• High-Speed Nets: Implement controlled impedance routing, Minimize vias and layer changes

3. Managing High-Speed Signals with Net Classes

• Impedance Control: Define specific impedance rules for high-speed Net Classes, ensuring consistent trace widths and spacing.
• Tip: Use Altium’s impedance calculator for precise trace width adjustments.
• Length Matching: Set maximum length deviation rules, Use tuning patterns for precise length control
• Shielding: Create rules for guard traces or ground planes, Minimize crosstalk between high-speed nets

4. Handling Differential Pairs

• Pair Creation: Define differential pair Net Classes, Automatically create pairs based on naming conventions
• Routing Rules: Set specific clearance and width rules for different pairs, Ensure consistent spacing between pair members
• Length Matching: Apply tight length matching rules within pairs, Use serpentine routing for length tuning

5. Tips for Efficient Routing with Net Classes

• Pre-route Planning: Review Net Class assignments before routing, Plan critical paths based on Net Class priorities
• Interactive Routing: Leverage Net Class-specific interactive routing modes, Use guided routing for complex Net Classes
• Post-route Verification: Run Design Rule Checks (DRC) filtered by Net Class and address violations promptly to maintain design integrity

Key Takeaway: Effective use of Net Classes in routing significantly improves PCB design efficiency, signal integrity, and overall board performance. Regular review and refinement of Net Class strategies lead to optimized routing results.

Key Takeaway: Leveraging Net Classes for signal integrity optimization enables designers to systematically manage complex PCB layouts, ensuring reliable performance and reducing the risk of signal integrity issues.

6. Optimizing Signal Integrity with Net Classes

1. Utilizing Net Classes for Impedance Control

• Define Impedance Rules: Create specific rules for high-speed Net Classes, Set target impedances (e.g., 50Ω, 100Ω for diff pairs)
• Layer Stack Management: Assign dedicated layers for critical Net Classes, Adjust stack-up parameters to meet impedance requirements
• Trace Width Calculation: Use Altium’s impedance calculator for each Net Class, Automatically apply calculated widths to traces

2. Managing Crosstalk and EMI

• Strategic Net Class Organization: o Group similar speed/frequency nets into classes o Separate sensitive analog nets from noisy digital ones
• Spacing Rules: o Set increased clearances for high-speed Net Classes o Implement graded spacing based on signal sensitivity
• Shielding Techniques: o Define rules for guard traces in sensitive Net Classes o Implement ground planes between critical signal layers

3. Simulating and Analyzing Signal Integrity

• Pre-layout Analysis: Use Net Classes to define simulation scenarios, Perform what-if analyses for different Net Class configs
• Post-layout Verification: Run signal integrity simulations on critical Net Classes, Analyze reflection, crosstalk, and EMI per Net Class
• S-Parameter Extraction: Generate S-parameters for specific Net Classes, Use for advanced signal integrity analysis

4. Advanced Techniques

• Differential Pair Management: Create specific Net Classes for different pairs, Apply tight coupling and length matching rules
• Via Management: Define via styles per Net Class, Minimize via use in high-speed Net Classes
• Return Path Planning: o Ensure proper return paths for each Net Class, Use plane layers strategically for critical classes

5. Optimization Tips

• Iterative Refinement: Start with broader Net Classes, refine as needed
• Use simulation results to guide Net Class adjustments
• Documentation: Create reports detailing Net Class signal integrity rules and document reasoning behind Net Class decisions for team reference
• Continuous Learning: Stay updated on the latest signal integrity best practices, Adapt Net Class strategies to new technologies and standards

7. Troubleshooting Common Net Class Issues in Altium Designer

1. Identifying and Resolving Net Class Conflicts

• Rule Precedence Issues: Check rule priorities in the PCB Rules and Constraints Editor and adjust priorities to ensure correct rule application
• Overlapping Rules: Use the Query Builder to test rule application
• Refine rule scopes to eliminate unintended overlaps.

2. Debugging Routing Errors Related to Net Classes

• Clearance Violations: o Verify clearance rules for each Net Class o Adjust trace widths or clearances as needed
• Width Constraints: o Ensure trace widths comply with Net Class rules o Check for minimum width violations in tight spaces

3. Best Practices for Clean and Organized Net Classes

• Naming Conventions: Use clear, consistent names for Net Classes, Include purpose or characteristics in the name
• Regular Audits: Periodically review Net Class assignments, Remove unused or redundant Net Classes
• Documentation: Maintain a log of Net Class definitions and purposes, Document any changes made during troubleshooting

4. Advanced Troubleshooting Techniques

• Temporary Rule Suspension: Disable specific rules to isolate issues, Re-enable rules one by one to pinpoint conflicts
• Net Class Visualization: Use color coding to visually inspect Net Class assignments and identify misclassified nets quickly
• Cross-Probing: Utilize cross-probing between schematic and PCB, Ensure Net Class assignments match design intent

5. Common Pitfalls and Solutions

• Over-Constraining: Avoid creating too many specific Net Classes. Consolidate similar Net Classes where appropriate
• Inconsistent Application: Ensure all team members understand Net Class usage, Implement design reviews focused on Net Class consistency
• Outdated Rules: Regularly update Net Class rules for new technologies, Review and adjust rules for each new project

Key Takeaway: Effective troubleshooting of Net Class issues involves systematic rule review, careful debugging, and adherence to best practices. Regular maintenance and clear documentation are crucial for long-term success with Net Classes in Altium Designer.

8. Advanced Techniques for Net Class Management

1. Using Scripting to Automate Net Class Operations

• Script Types: DelphiScript, VBScript, JavaScript
• Common Automation Tasks: Bulk creation of Net Classes, Automatic net assignment based on naming conventions, Generation of Net Class reports
• Example Script Function: Automatically create Net Classes for power nets:

procedure CreatePowerNetClasses;
var
NetClass: INetClass;
begin
// Create a new Net Class called “PowerNets”
NetClass := PCBServer.GetCurrentPCBDocument.NetClasses.Add(‘PowerNets’);

// Add nets to the “PowerNets” class
// For example, you can add nets by their names
NetClass.AddNet(‘VCC’);
NetClass.AddNet(‘GND’);
NetClass.AddNet(‘VDD’);

// Refresh the PCB document to apply changes
PCBServer.PostProcess;
end;

Benefits: Increased consistency across projects, Time-saving for repetitive tasks, Reduced human error in Net Class management

2. Integrating Net Classes with Multi-Board Features

• Hierarchical Net Classes: o Define parent Net Classes for the main board o Create child Net Classes for sub-boards
• Cross-Board Rules: o Implement Net Class rules that apply across multiple boards o Ensure signal integrity in complex multi-board systems
• Connector Management: o Use Net Classes to manage board-to-board connections o Ensure consistent treatment of inter-board signals

3. Leveraging Net Classes for Team Collaboration

• Standardization: Create company-wide Net Class libraries, Establish naming conventions for consistent usage
• Version Control: Include Net Class definitions in version-controlled documents, Track changes to Net Classes across project iterations
• Review Process: Implement Net Class review checkpoints in the design flow, Use Net Class reports for design reviews

4. Advanced Net Class Strategies

• Dynamic Net Classes: Create scripts to update Net Classes based on design changes, Automatically adjust Net Classes during different design phases
• Parametric Net Classes: Define Net Classes using parametric constraints, Allow for flexible, rule-based Net Class assignments
• Simulation Integration: Link Net Classes to simulation models, Streamline signal integrity and EMI analysis workflows

5. Best Practices for Advanced Net Class Management

• Documentation: Maintain detailed documentation of custom scripts and processes, Create user guides for team-specific Net Class strategies
• Training: Conduct regular team training on advanced Net Class techniques, Share best practices and lessons learned across projects
• Continuous Improvement: Regularly review and optimize Net Class management processes, Solicit feedback from team members on Net Class usability

Key Takeaway: Advanced Net Class management techniques in Altium Designer can significantly enhance design efficiency, consistency, and collaboration in complex PCB projects. Leveraging scripting, multi-board integration, and team-wide strategies allows for sophisticated control over design rules and signal integrity across diverse design scenarios.

9. In Sum

Mastering Net Classes in Altium Designer is a game-changer for PCB designers looking to streamline their workflow and create more organized, efficient designs. By implementing the techniques and best practices we’ve covered, you’ll be well-equipped to tackle even the most complex PCB projects with confidence. Remember, the key to success lies in consistent application and continuous learning. So why not put your new knowledge to the test? Fire up Altium Designer and start experimenting with Net Classes in your next project. Your future self (and your team) will thank you for the time and headaches saved. Happy designing!
