PCBs can sometimes buckle during PCB assembly, leading to significant issues if left unaddressed. This blog post discusses the causes, effects, and solutions for PCB buckling during assembly.

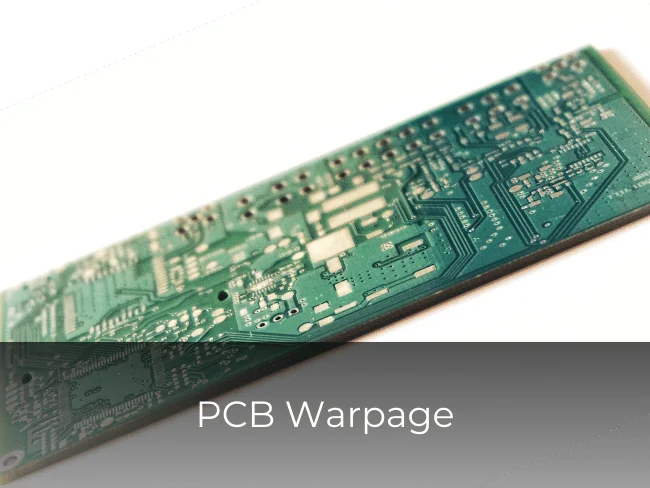

PCB Warpage during PCB Assembly

What is PCB Buckling?

PCB buckling is when a printed circuit board bends or twists during assembly, compromising its integrity and potentially affecting the device’s functionality.

Causes of PCB Buckling

Several factors can contribute to PCB buckling during assembly, including:

  • Thermal Stress: Rapid temperature changes during soldering or reflow processes can induce thermal stress, leading to PCB deformation.
  • Uneven Distribution of Components: Imbalances in component placement or uneven soldering can create localized stresses, resulting in board warping.
  • Inadequate Support: Improper handling or insufficient support during assembly can exert mechanical stress on the PCB, causing it to bend or twist.
  • Material Properties: Variations in PCB material properties, such as thickness or composition, can influence its susceptibility to buckling.

Effects of PCB Buckling

The consequences of PCB buckling can vary from minor cosmetic defects to severe functional issues.

  • Solder Joint Cracks: PCB deformation can strain solder joints, leading to cracks or fractures and compromising electrical connections.
    Component Misalignment: Warped PCBs may cause components to shift or become misaligned, affecting their performance or functionality.
  • Signal Integrity Issues: Deformed PCBs can distort signal transmission paths, resulting in signal integrity issues such as crosstalk or signal attenuation.
  • Reliability Concerns: Buckled PCBs may experience premature failure or reduced reliability over time, impacting the longevity of the electronic device.

Solutions for PCB Buckling

To mitigate the risk of PCB buckling during assembly, consider implementing the following measures:
Optimize Thermal Management: Use proper thermal management techniques, such as preheating or controlled cooling, to minimize thermal stresses during soldering
Ensure Even Component Placement: Maintain uniform component placement to distribute mechanical stresses evenly across the PCB.
Provide Adequate Support: Use fixtures or supports to prevent PCB flexing during assembly, ensuring stable and uniform pressure distribution.
Select Suitable Materials: Choose PCB materials with appropriate mechanical properties and thickness to withstand the PCB assembly process.

In Sum

PCB buckling during assembly challenges manufacturers and affects product quality and performance. Understanding causes and solutions is crucial for reliability. Best practices in thermal management, component placement, support provision, and material selection mitigate risks, ensuring robust electronic assemblies. Addressing PCB buckling remains essential for high-quality products in the evolving electronics industry.
