TLDR: Most PCB assembly defects start as warpage from design and lamination. Balance copper and symmetry, match materials, keep cutouts and mass distribution even, align with your fabricator’s press plan, tune reflow gradients, and measure flatness early. Tighten flatness limits to protect yield.
Your BGA had perfect paste volume. You checked the stencil apertures twice. The reflow profile was dead-on. And three corners of that package still lifted.
So you reflowed it again. Same result. Swapped the component. Didn’t matter.
Then somebody laid a straight edge across the board. There it was, 0.4 mm of bow you’d never catch in inspection. Your soldering problem wasn’t a soldering problem. It got baked into the stack-up six weeks before assembly even started.
This is the warpage problem. It doesn’t show up in DRC, but once it’s there, every step of assembly, placement, reflow, inspection, pays the price.
What Actually Happens
Warpage is what you get when a PCB that should be flat is not.

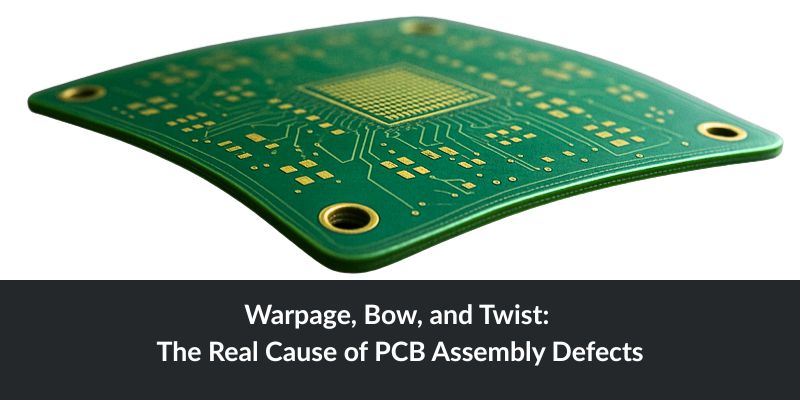

Bow is when the board curves like a potato chip. Twist is when opposite corners rise in different directions like a propeller. Both appear when different parts of the PCB expand and contract at different rates, usually during lamination or reflow.
When that happens, components sit at different heights. Solder paste volumes vary. Parts tombstone, shift, or bridge. BGAs open intermittently. You start troubleshooting phantom assembly issues that began in the stack-up.
Why Designers Don’t See It Coming
Most engineers think warpage is a fab problem. It starts in design.
The usual suspects
- Unbalanced copper. Ground pour on layer 2, thin traces on layer 5. They don’t expand the same. The board curves.
- Odd layer counts. Four or six layers stay stable. Five or seven fight you. Asymmetry creates internal stress that shows up during assembly.
- Mixed materials. FR-4 next to Rogers. Different CTEs. Heat them, they pull apart. We measured 0.6 mm warp on 8-layer hybrids that later caused BGA opens in production.
- Big cutouts. Large voids flex, especially under BGAs or connectors. Asymmetric voids bend the panel and throw off alignment.
- Thermal hot spots. A dense power island heats faster. Uneven expansion locks in distortion as it cools, creating local stress.
None of these are fabrication defects. They are design choices that build mechanical stress into the board.
How Fabrication Makes It Worse
Even a balanced stack-up twists if lamination is rushed.
High press pressure squeezes resin unevenly. Fast cooling traps stress in the glass weave. Random prepreg orientation pulls layers in different directions. Skipping relaxation cycles leaves curvature that reappears in reflow.
Good fabricators track prepreg orientation, control cooling, add relaxation cycles, and measure post-press flatness. Cheap ones don’t.
Real PCB Assembly Failures We’ve Debugged
- 0402 tombstoning in one corner of a 6 × 8 inch board. A 0.3 mm bow caused uneven heating and poor solder wetting.
- BGA opens after second-side reflow. The board twisted, half the package lifted, yield tanked.
- AOI false defects. The inspection camera failed to focus on a 0.5 mm bowed panel, so good parts were flagged.
- Connector joint cracks after 50–100 thermal cycles. Cyclic flex drove fatigue and reliability failures.
All looked like process issues. None were.
How to Design Around Warpage
Prevent it early, avoid diagnosis later.
- Balance copper by area and by distance from the neutral axis. Keep opposing layers within ±10 percent.
- Use even layer counts. Symmetry around the core gives the simplest protection.
- Center heavy components. Keep large BGAs and connectors away from edges, leverage during reflow creates lift.
- Keep cutouts symmetric. Center large voids or distribute them evenly.
- Use consistent materials. Match CTE across the stack-up or mirror hybrids to stabilize reflow behavior.
- Add copper fill. Use thieving or hatched fills to reduce density gaps and keep fill away from edges.
- Specify flatness. IPC-6012 allows 0.75 percent bow or twist. Tighten that spec if the design demands it.
Why Balanced Copper Isn’t Enough
Two layers with identical copper weight still drive very different stress.
Copper far from the neutral axis produces more bending than copper near the center. A 1 oz pour 0.8 mm from center produces about three times the bending moment of a 2 oz pour 0.3 mm from center.
That’s why some “balanced” designs still warp. Geometry, not only copper weight, drives stress.
The Reflow Profile Trap
Boards that leave fab flat still warp during reflow.
If the top side carries more mass, it often heats 20–30 °C hotter than the bottom. That gradient permanently bends laminates that looked stable before assembly.
Double-sided builds show the highest risk. After the first pass, the second reflow heats a thermally unbalanced board. Adjust soak and ramp rates to reduce top-to-bottom temperature delta. We saw measurable yield improvement by tuning profiles alone.
How We Measure Flatness
We verify panel flatness post-lamination, post-routing, and post-reflow using granite surface plates, laser displacement sensors, and vacuum tables.
Post-lamination shows press-cycle stress. Post-routing shows stress released by machining. Post-reflow shows distortion from heat exposure.
IPC-6012 and IPC-A-600 define limits, but anything near 0.75 percent already risks assembly defects. The earlier we measure, the more we correct before yield loss.
What Actually Works
Warpage isn’t a fabrication defect or a soldering issue. It is a design-and-process interaction problem.
Get copper distribution, symmetry, and materials right. Align with your fabricator on the lamination plan. Measure flatness before assembly, not after yield drops.
If your board stays flat, placement improves, reflow becomes more repeatable, AOI stops throwing false defects, and solder joints survive thermal cycling.
You won’t see this by eye. A 0.3 mm bow hides in plain sight yet devastates fine-pitch work. Use measurement tools or work with a partner who does.
