Signal integrity and thermal performance don’t start at the layout stage—they start with your stackup.

Here’s how poor layer planning quietly breaks your 6-layer design.


The Hidden Failure Path in 6-Layer Boards

You can route it cleanly. Simulate it thoroughly. Drop in the latest components.

But if your 6-layer stackup isn’t built right, your PCB can still fail—before you ever power it on.

Signal integrity. EMI. Thermal runaway. These aren’t layout problems. They’re stackup problems in disguise.

  • Signal layers stacked together with no return plane between them → increased crosstalk
  • Missing or thin ground planes → weak shielding, unstable impedance
  • Thermal hotspots → copper weight mismatch, no vertical heat path
  • Uncontrolled dielectric thickness → impedance drifts off-spec

Adding more layers doesn’t solve these issues. Allocating them properly does.

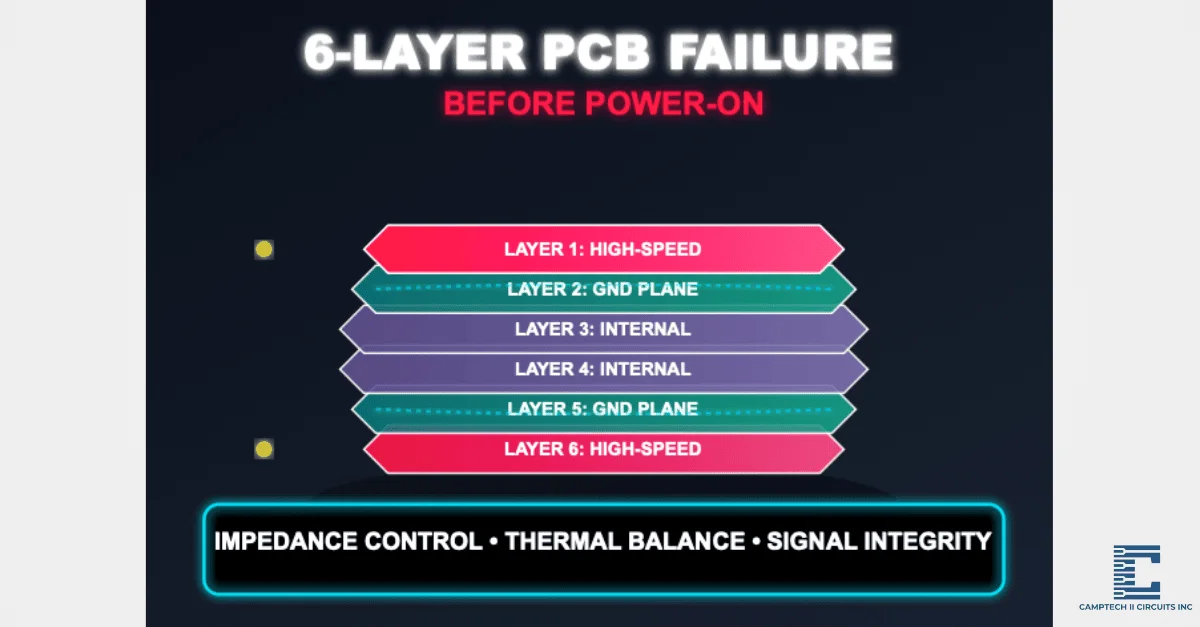

An Optimized 6-Layer Stackup Fixes This

The highest-performing 6-layer boards all follow the same principles:

  • Route high-speed signals on layers 1 and 6 → short vias, direct component access
  • Use layers 2 and 5 as solid ground planes → shields inner signals and stabilizes impedance
  • Place layers 3 and 4 for internal routing or power planes → thermal and signal control

This structure provides:

  • Strong return paths for fast edge rates
  • Minimal impedance variation
  • Lower EMI emissions
  • Thermal balance across the board

The Cost of Getting It Wrong

Poor stackup decisions don’t show up until it’s too late:

  • Signal quality degrades, but simulation says “pass”
  • Compliance testing fails, adding weeks of redesign
  • Boards run hotter than expected, degrading component lifespan

And worse: many of these are blamed on layout, when stackup is the root cause.


Camptech Helps You Get the Stackup Right the First Time

At Camptech, we help engineers design 6-layer stackups that work in real-world manufacturing conditions:

  • Stackup templates tuned for impedance, thermal performance, and manufacturability
  • Copper balance and layer symmetry review to avoid warpage and hotspot issues
  • Material selection support for speed and thermal loads

You don’t need to over-engineer. You need a stackup that supports your layout before you ever open your CAD tool.


Need to Optimize Your Stackup?

We’ll review your design and recommend a stackup strategy based on:

  • Target impedance
  • Thermal load distribution
  • Ground and power return integrity

Start with the right foundation.
